tapping machine M36 CNC servo auto electric Flex Arm vertical

Name: tapping machine M36 CNC servo auto electric Flex Arm vertical
Brand: WADJAY
Price: 1 USD

Wholesale tapping machine M36 CNC servo auto electric Flex Arm vertical from china suppliers

Brand Name : WADJAY

Model Number : M36 tapping arm machine

Certification : ISO/CE

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 800 sets/month

Delivery Time : 5-8 working days

Packaging Details : plywood case strong

Max. Drilling Dia. (mm) : 36 mm

Range of Spindle Speed(r.p.m) : 1 - 200

Dimension(L*W*H) : 120*120*20cm

Tapping Range : M6-M36

Max.Tapping Speed : 200RPM

Working radius : 1300mm

Contact Now

Product Description

tapping machine M36 CNC servo auto electric Flex Arm vertical

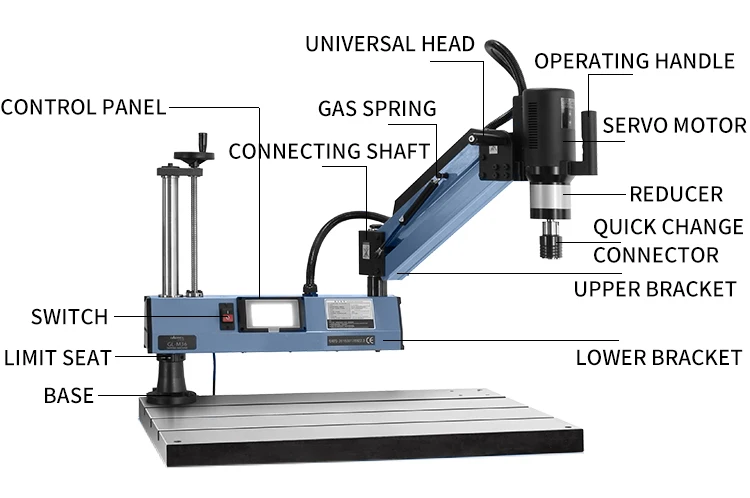

Standard Accessories:
>>AC Servomotor
>>Tapping arm(Working Area Optional:1300mm)
>>Tap Holder:M6,M10,M12,M14,M16,M24,M36( For ISO 529 Tap)
>>Optional: For JIS Tap and For DIN 371 Tap
>> Fixed Joint( only tapping in vertical direction)
>> Optional:Universal Joint( tapping in any angle)
>> Optional:Moving work table, or Magnetic base (Tapping an arbitrary range)
>> Optional:Control mode(Touchscreen)

Model	ET-36-AN
Voltage	220V
The working current	Hz50
Rated power	1000W
Tapping range	M6-M36
Chuck type	M6-M36
Chuck number	11
Working mode	Vertical;Vertical and horizontal dual-purpose
Chuck specification	GT24-B18
Working radius	1300mm
Max.speed	200rpm
Can be customized	Yes
Weight of machine	48kg

Small hole high speed tapping machine, a unique leading-edge technology, to ensure that the tap will not be broken.
1. Used in military precision instrumentation, mold and other industries thread processing;
2. Solve problems that tap easily broken and be jammed during processing micro & deep hole threads;
3. Adopt U.S. dual-core chip CNC system;
4. Can set the depth of the hole and different materials;
5. Fast tracking, security tapping; Can dynamic display the real-time data;
6. Can record the depth, number of turns, screw pitch and other data of processed thread;
7. Can be used for analyzing the data of laboratory;
8. Can replace the desktop machine.

tapping machine M36 CNC servo auto electric Flex Arm vertical

tapping machine M36 CNC servo auto electric Flex Arm vertical Images
