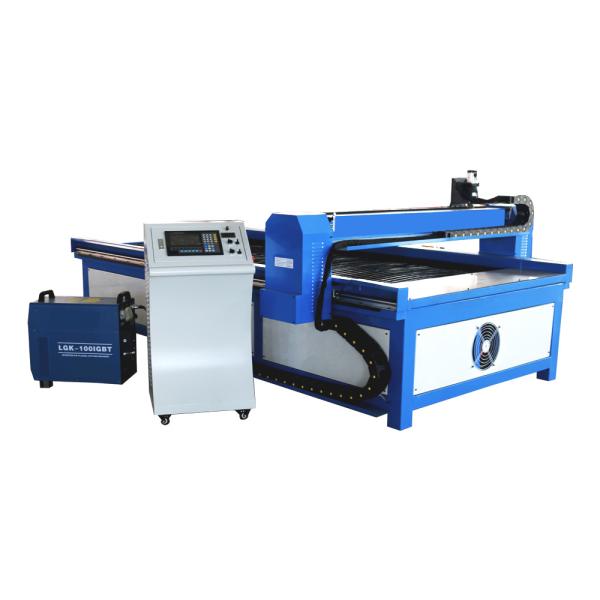

Working table 2500*1300mm plasma cutting machine metal cleaning slag plasma cutting

Product Categories

Tapping Machine [74]
Roll forming machine [112]
Metal Planer [25]
Gear Hobbing Machine [36]
Metal Cutting Machine [67]
Drilling milling machine [63]
Lathe machine [182]
Slitting machine [5]
Other machine [97]
Laser products [14]
Wire Mesh Making Machines [12]
Aluminium Foil Container Production Line [8]
spring machine [5]
hoop forming machine [20]
Auxiliary machinery [10]

Henan WadJay Machinery Co.Ltd

Contact Now

Working table 2500*1300mm plasma cutting machine metal cleaning slag plasma cutting

Name: Working table 25001300mm plasma cutting machine metal cleaning slag plasma cutting
Brand: WADJAY
Price: 1 USD

Wholesale Working table 2500*1300mm plasma cutting machine metal cleaning slag plasma cutting from china suppliers

Model Number : 1325

Certification : CE/ISO

Place of Origin : China

MOQ : 1 piece

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10 sets / month

Delivery Time : 5-8 working days

Packaging Details : Standard export packaging

Brand Name : WADJAY

working area : 1300*2500mm

Max work diameter : 300mm

Machine body : Cast iron

Driving Motor : Step motor 450B+450C

Driver : Large step driver Yako 2811

Rotary inverter : 4.5kw

Center sheath size : Inner Diameter 68mm

Max feed rate : 200cm/min

Contact Now

Working table 2500*1300mm plasma cutting machine metal cleaning slag plasma cutting

Product Description

We do this line many years, have rich experience and professional knowledge, will let you get the most suitable machine with the right configuration. This ability can let you avoid many mistake and avoid some trouble. Other factory usually lack this experience, and bring some trouble for the real customer.

plasma cutting machine details

Model	1325
X,Y working area	1300*2500mm
Z working area	150mm
Packing dimension	2260mm3450mm1850mm
Lathe bed	Very thick steel structure
Machine Power	8.5kw
Working voltage	380V three phase 60hz
Reposition precision	0.02mm
Processing precision	0.1mm
Maximum cutting speed	12000mm/min
Torch Height control mode	Automatic

Detailed Images

With PLC

Working table 2500*1300mm plasma cutting machine metal cleaning slag plasma cutting

Plasama cutting products

Working table 2500*1300mm plasma cutting machine metal cleaning slag plasma cutting
